Ultraviolet Cabinets

Ultraviolet Cabinets are designed and fabricated specific to each application and come in all shapes and sizes. From cabinets that facilitate a pass through system between adjacent rooms to a cabinet with movable shelves accommodating multiple sized pieces, our engineering team customizes each UVC sterile cabinet to meet each individual customer's requirements and needs.

All cabinets can be transformed into weathering chambers by utilizing UVA lamps for weathering purposes.

Food Products Sterilization Cabinet

Food Products Sterilization Cabinet

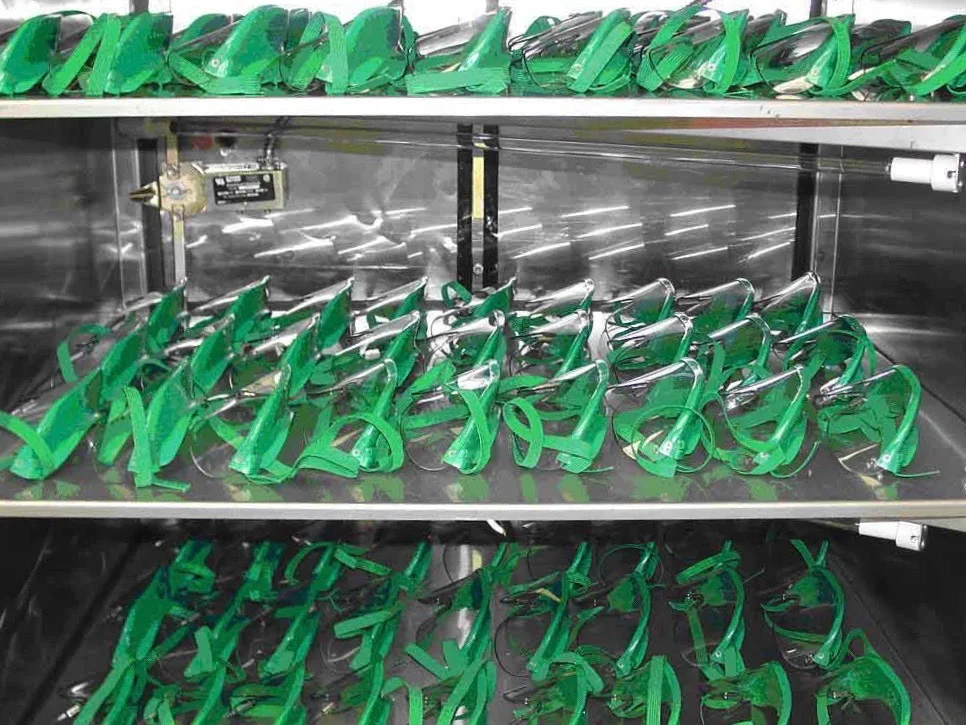

Goggles Sterlization Cabinet

Goggles Sterlization Cabinet

Medical Supplies Sterlization Cabinet

Medical Supplies Sterlization Cabinet

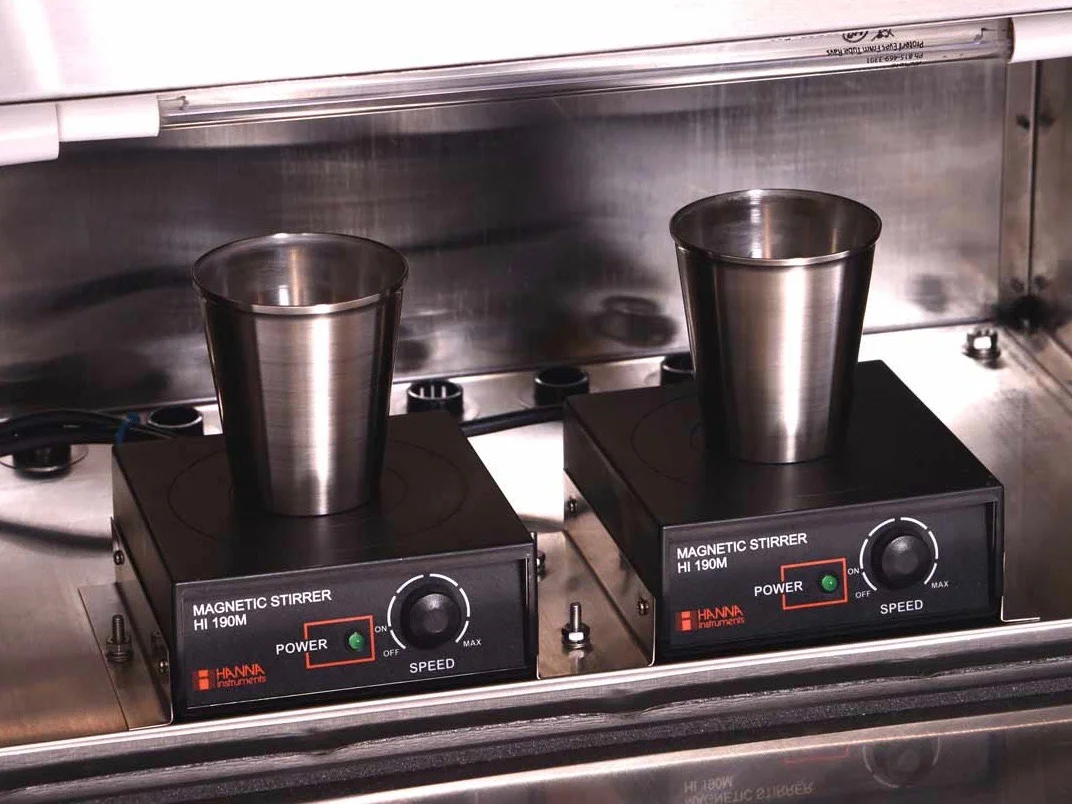

Liquid Sterilization Test Cabinet

Liquid Sterilization Test Cabinet


Standard Cabinet Models

In addition to our custom designed Ultraviolet Cabinets, standard models below are available in three sizes and can be further customized to fit precise UV treatment needs.


FG 1224 Ultraviolet Cabinet

Sterilization Shelf Size: 12" x 19"
Product Application: Single Shelf
Lamps: 2 x 24 watt UVC

FG 1324 with Side Swing Style Door, Pass-Through Rear Door, and Timer

FG 1424 Ultraviolet Cabinet

Sterilization Shelf Size: 19" x 19"
Product Application: Single Shelf
Lamps: 4 x 24 watt UVC

FG 1624 with Side Swing Style Door

FG 1624 Ultraviolet Cabinet

Sterilization Shelf Size: 19" x 19"
Product Application: Dual Shelf
Lamps: 6 x 24 watt UVC


Standard Cabinet Components

  • Construction: 304 Stainless Steel Housing and Bright Annealed (BA) Stainless Steel Interior Panels
  • Stainless Steel Shelf: Mesh or Solid
  • Cabinet Operation: Auto Door Switch
  • Cabinet Door: Drop Down (Side Load)
  • Cabinet View Port
  • Closure: Stainless Steel Latch
  • Electrical: 120V 60 Hz. with Grounded Power Cord

Optional Cabinet components

  • Lamp Output: High Output Amalgam
  • Construction: 316 Stainless Steel Housing
  • Cabinet Operation: Interval Timer, Manual On/Off Switch
  • Cabinet Door: Left/Right Swing (Side Load), Swing Up (Top Load), Passthrough Door
  • Closure: Secure Lock and Key
  • Electrical: Other Voltages Available
