Tank Head Space Fixtures

Tank Head Space Fixtures treat head space interiors in liquid storage tanks. As product is filled or dumped from the tank, air travels across the Tank Head Space Fixture. This movement propels microorganisms towards the ultraviolet lamps, where they are reduced.

The following factors are determined if a Tank Head Space Fixture is the right system:

Humidity & Temperature
Tanks that have high temperature and humidities on a consistent basis may not be a suitable environment for interior fixtures and the broadcasting of ultraviolet rays.

Average Tank Capacities
The closer the UV fixture to the product, the more effective the ultraviolet rays. However, the product must never be in contact with the fixture. If the product can stay at least 4” from the bottom of the fixture, this may be feasible. Tanks that have a history of being inadvertently overfilled should not be equipped with Head Space Fixtures.

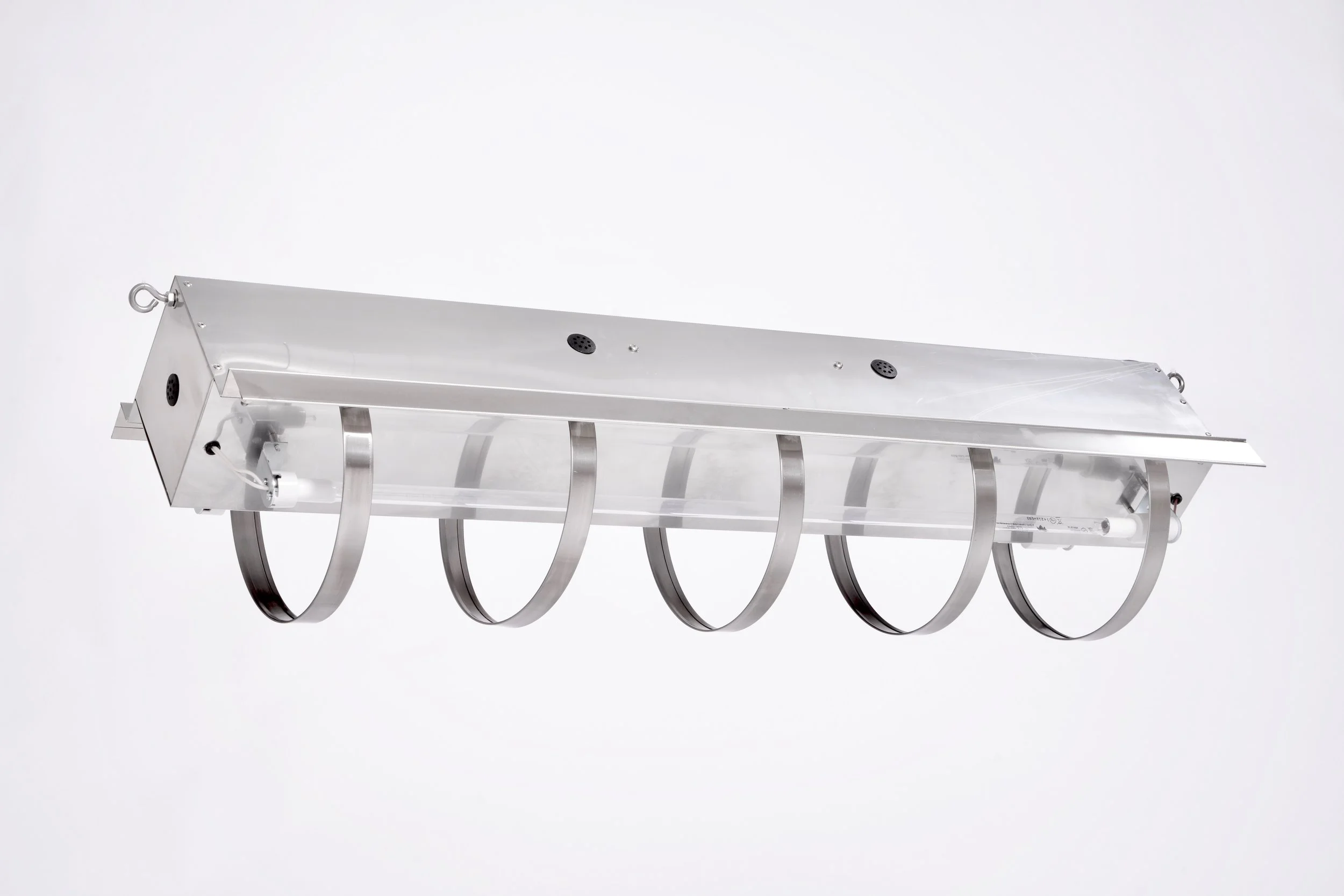

Standard Tank Head Space Fixtures are constructed without the use of welds to prevent breakdown in seams and joints from excessive moisture and comes standard with stainless steel wrap-around caging.

Tank Head Space Fixture Models

FG 7116 Tank Head Space Fixture

Lamp: 1 x 55µ W/cm² @ 1 Meter Lamp
Dimensions: 40" Long, 7" Wide, 5" High
Power Requirements: 120 V., 60 Hz., .5 A.

FG 7216 Tank Head Space Fixture

Lamps: 2 x 55µ W/cm² @ 1 Meter Lamps*
Dimensions: 40" Long, 9" Wide, 7" High
Power Requirements: 120 V., 60 Hz., 1.0 A.

FG 7136 Tank Head Space Fixture

Lamp: 1 x 120µ W/cm² @ 1 Meter Lamp
Dimensions: 40" Long, 7" Wide, 5" High
Power Requirements: 120 V., 60 Hz., .75 A.

FG 7236 Tank Head Space Fixture

Lamps: 2 x 120µ W/cm² @ 1 Meter Lamps*
Dimensions: 40" Long, 9" Wide, 7" High
Power Requirements: 120 V., 60 Hz., 1.5 A.

FG 7164 Tank Head Space Fixture

Lamp: 1 x 200µ W/cm² @ 1 Meter Lamp
Dimensions: 68" Long, 7" Wide, 5" High
Power Requirements: 120 V., 60 Hz., 2.0 A.

FG 7264 Tank Head Space Fixture

Lamps: 2 x 200µ W/cm² @ 1 Meter Lamps*
Dimensions: 68" Long, 9" Wide, 7" High
Power Requirements: 120 V., 60 Hz., 3.5 A.

*Distance Between Lamps: 5"

STANDARD SYSTEM COMPONENTS

  • Construction: 304 Stainless Steel
  • Electrical Service: 120 V. 60 Hz.
  • Lamp Protection: Protective Lamp Jackets
  • System Protection: Stainless Steel Caging

CUSTOMIZABLE SYSTEM UPGRADES

  • Construction: 316 Stainless Steel for Corrosive Applications or Anodized Aluminum
  • Electrical Service: Other Voltages Available
