Connection Location

The hinged access cover to the lamp chamber will always be the reference point. Use this as your guide to determining where your connection is required, whether the system is mounted horizontally (standard) or vertically (optional).

A = Standard Position

B = Front Wall Mount

C = Access Door Mount (Not Available on the FG 2030H)

D = Sidewall Mount: Left

E = Sidewall Mount: Right


FG 2030H Sterile Conditioner

  Horizontal Tank Top & Alcove Mount

Horizontal Tank Top & Alcove Mount

 Vertical Floor Mount

Vertical Floor Mount


FG 2072H Sterile Conditioner

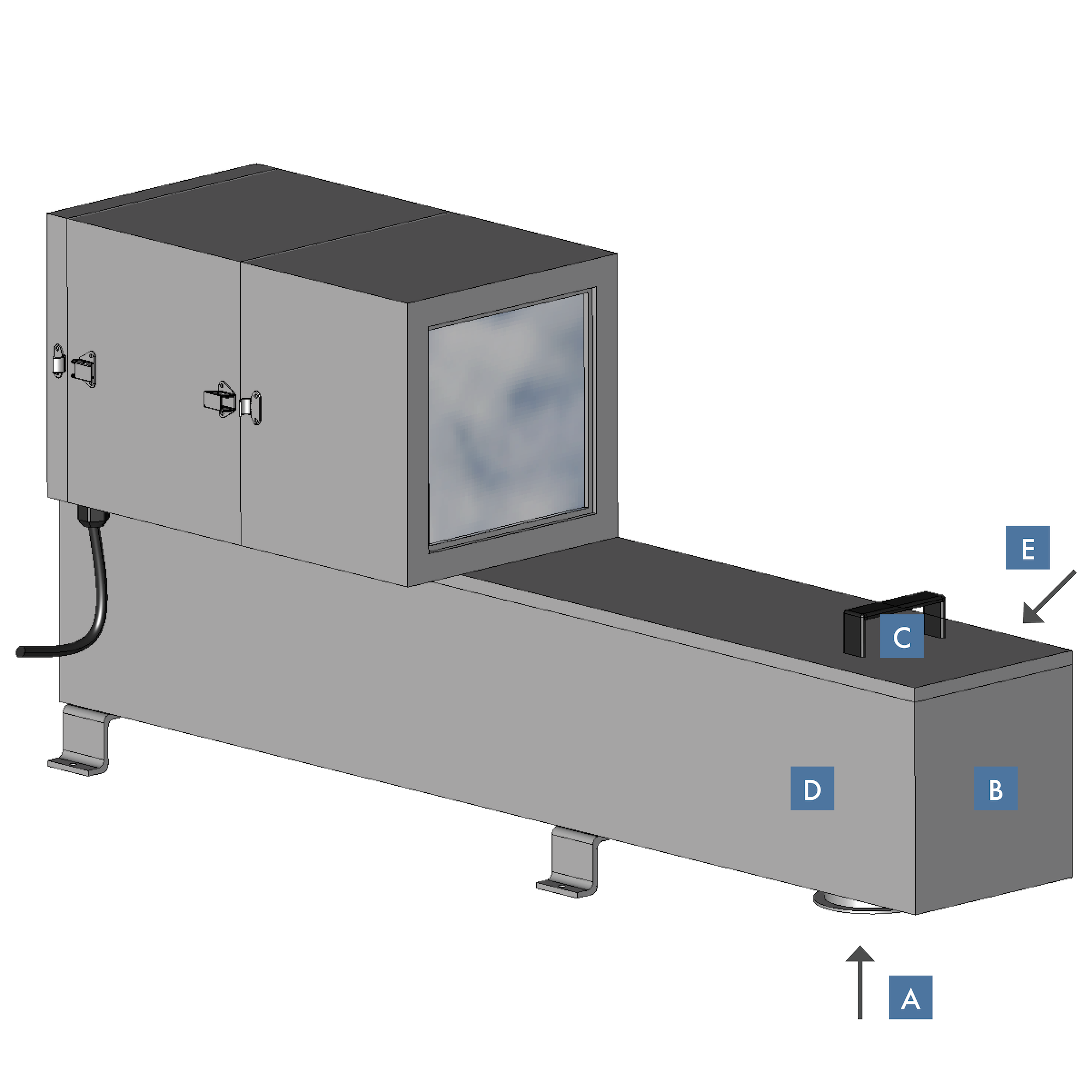

  Horizontal Tank Top & Alcove Mount

Horizontal Tank Top & Alcove Mount

 Vertical Floor Mount

Vertical Floor Mount


FG 2108H Sterile Conditioner

  Horizontal Tank Top & Alcove Mount

Horizontal Tank Top & Alcove Mount

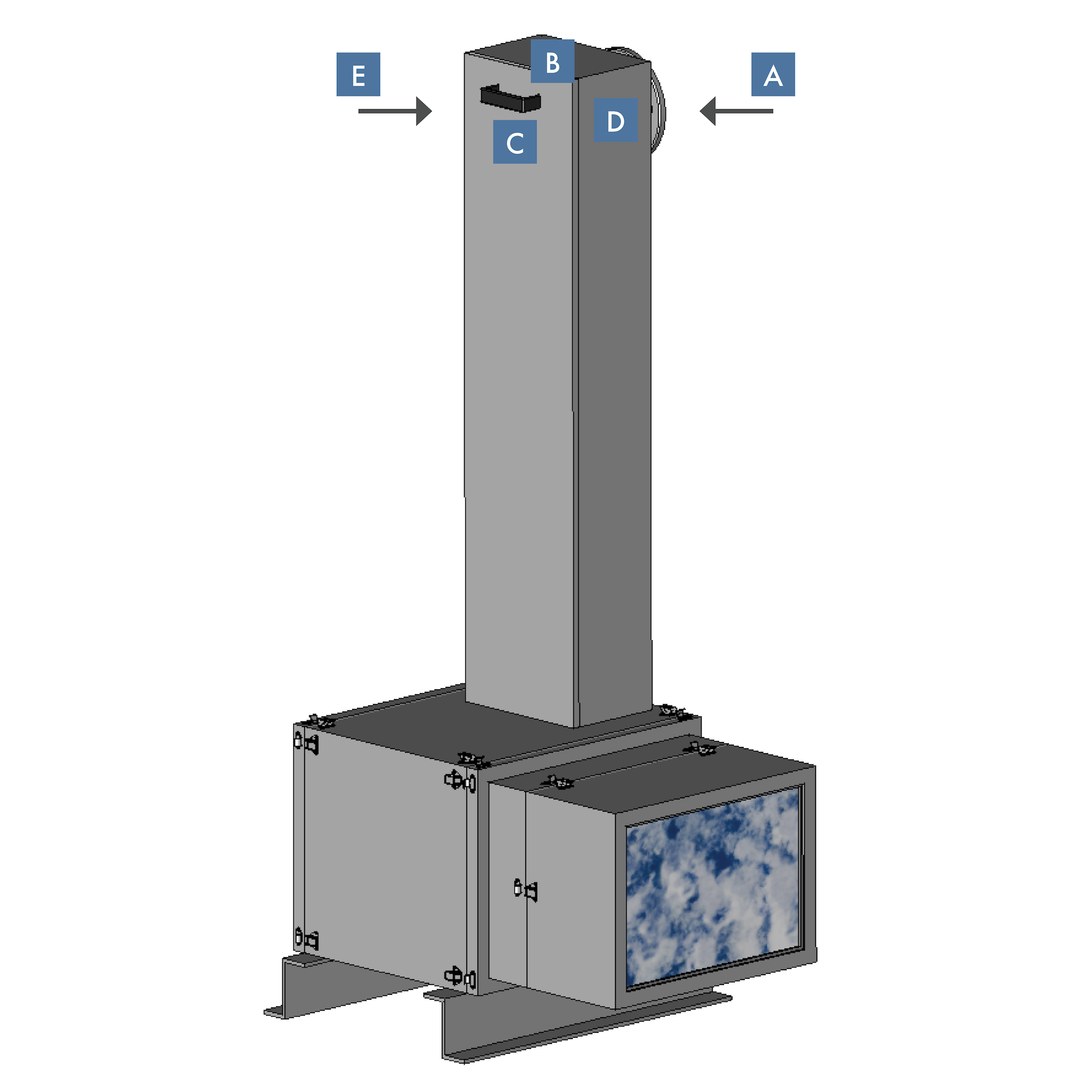

 Vertical Floor Mount

Vertical Floor Mount


FG 2144H Sterile Conditioner

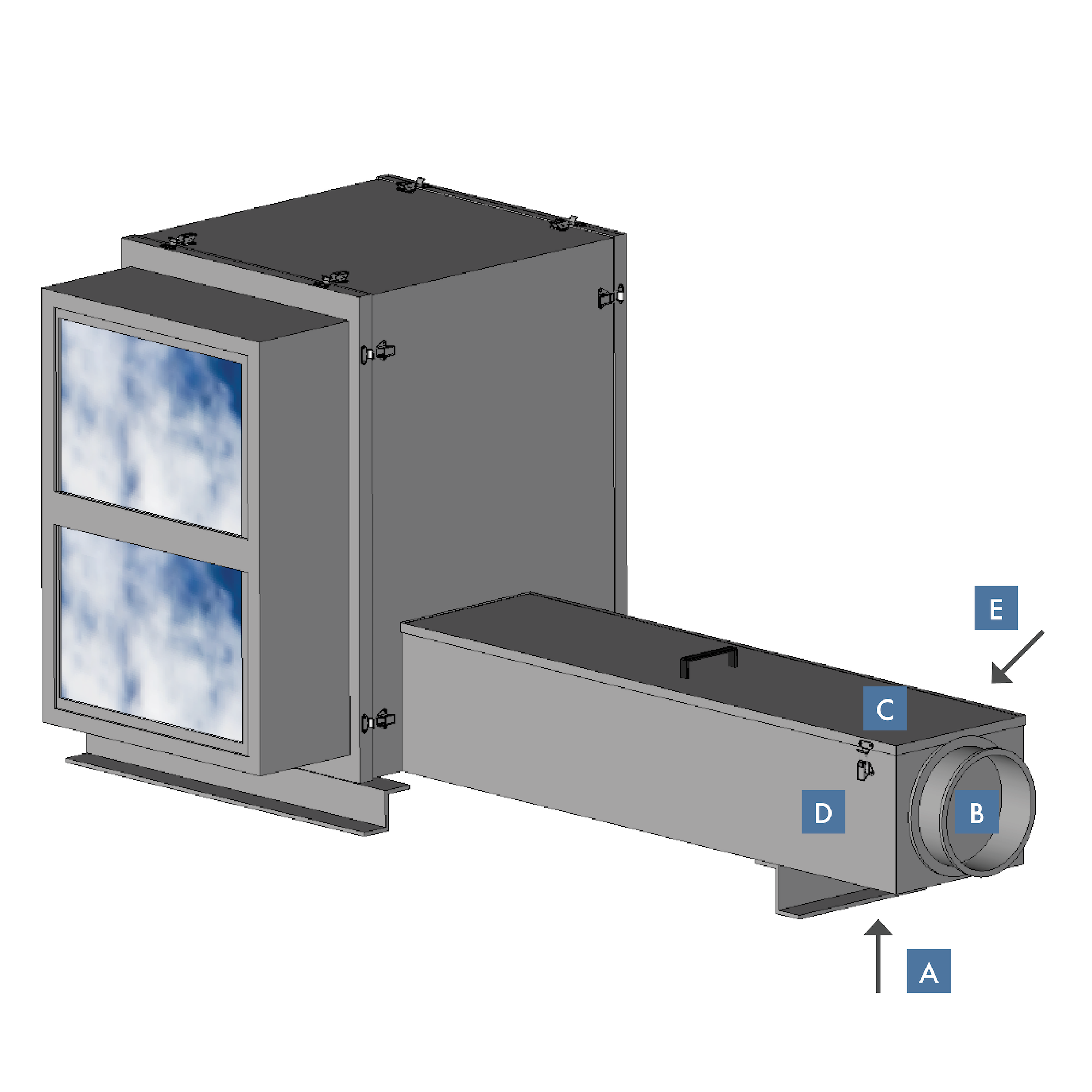

  Horizontal Tank Top & Alcove Mount

Horizontal Tank Top & Alcove Mount

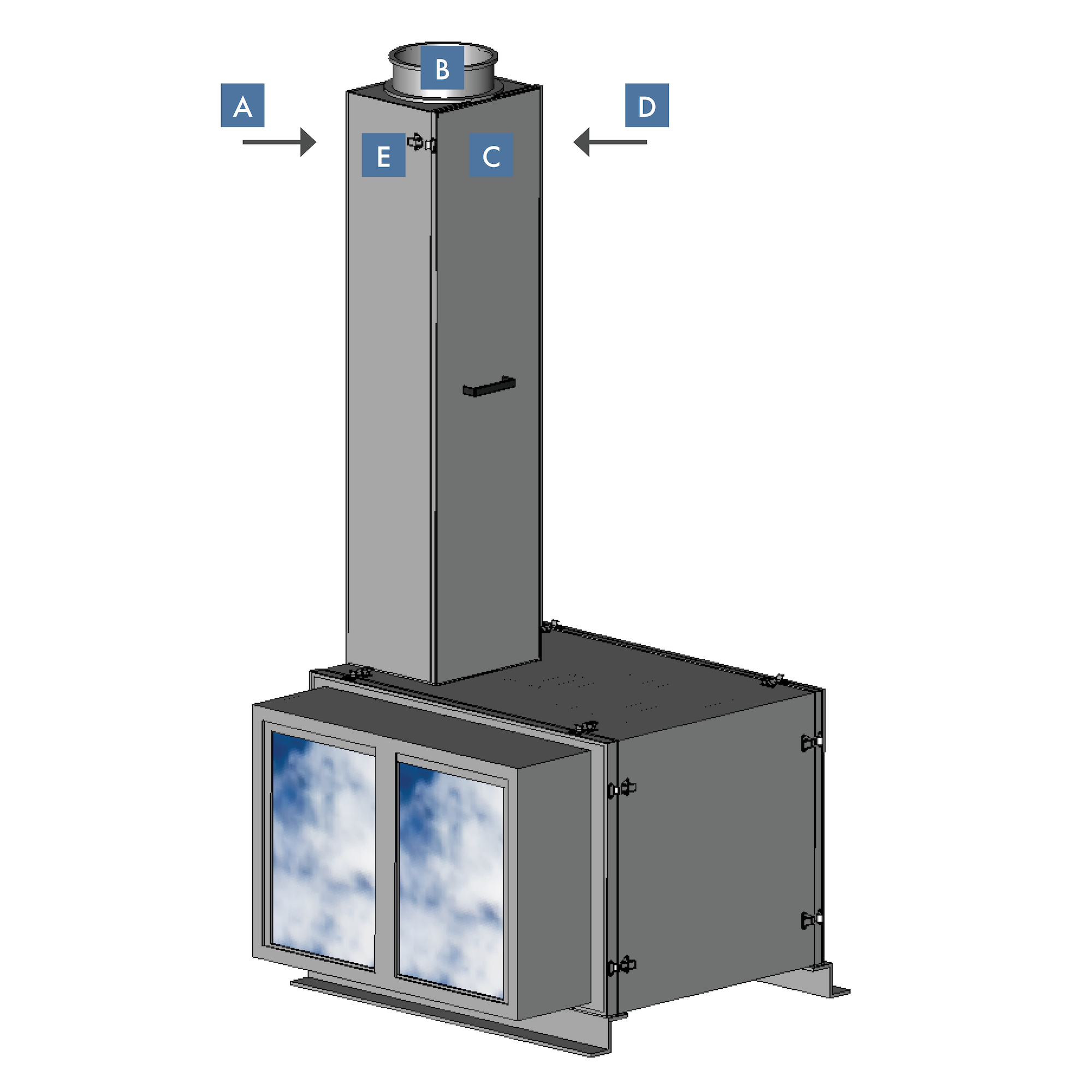

 Vertical Floor Mount

Vertical Floor Mount
